Diagnostic QA SolutionsUrethane Ultrasound Phantoms are relied on for training and QA testing of B-mode ultrasound systems. A selection of models supports your clinical needs and helps you meet requirements.
Ensure your ultrasound systems are accurately imaging complex cases. Consistent testing with your ultrasound devices means greater confidence in your patient assessments. Plus, an enhanced 4-year warranty is one of the longest warranties available for ultrasound QA phantoms.
Maintain Compliance
The Urethane Ultrasound Phantoms are generally compatible with AIUM, ACR, AAPM, IEC 62736, IPEM 102, and EFSUMB TQA QA Guidelines.

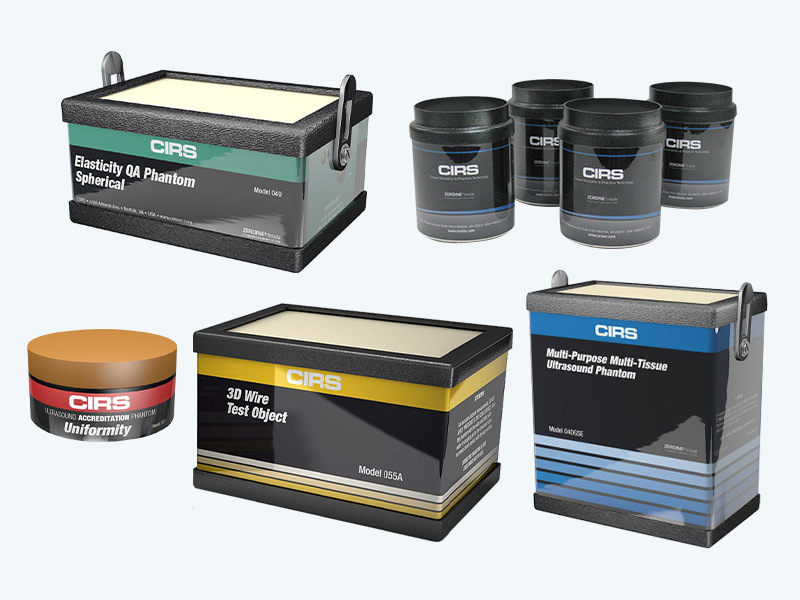

Suite of Offerings
Our Urethane Phantoms suite offers precisely spaced pin targets and fibers, and varying surfaces, for testing various applications.
Multi-Purpose Phantom
- Complete B-Mode QA Test Coverage
- Evaluate the full range of clinical imaging frequencies
- Combination of monofilament line targets for distance measurements and tissue-mimicking target structures of varying sizes and contrasts.
Multi-Purpose & Endoscopic Phantom
- Complete B-Mode QA Test Coverage
- Evaluate the full Range of Clinical Imaging Frequencies
- New and improved scan surface design to easily accommodate linear, sector, endoscopic probes, and mechanical sector probes such as those used for rectal scanning.
Small Parts Phantom
- Detect small anatomical features
- Evaluate the vertical and horizontal calibration measurements, dead zone and axial-lateral resolution
- Enhanced axial-lateral resolution targets
3D Calibration Phantom
- Special Purpose Phantom
- Evaluate image system’s performance along with its 3D volumetric measurements
Invenia ABUS Phantom
- Special Purpose Phantom
- Designed for use with GE’s Invenia ABUS scanner
Specifications
Attenuation Coefficient |
0.5 dB/cm/MHz ± 10% |
Freezing Point |
< -40° C |
Melting Point |
Above 100° C |
Frequency Range |
2 - 18 MHz |
Speed of Sound |
1450 m/s ±1.0% at 23° |
Dimensions |
23.4 cm x 20.5 x 9.5 cm (9” x 8” x 4”) |
Weight |
7 lbs (3.1 kg) |
Housing Material |
PVC |
Wall Thickness |
1.0 cm |
Scan Surface Dimensions |
(2) 15.5 x 7.5 cm; (2) 14.0 x 7.5 cm |
Dimensions |
27 cm x 21.5 x 9.6 cm (11” x 8” x 4”) |
Weight |
10 lbs (4.5 kg) |
Housing Material |
PVC |
Scan Surfaces |
2 |
Scan Wells |
1 cm |
Line Targets |
Material: Monofilament nylon |
Endocavity |
Opening: Ø 26.9mm x 71mm deep |
| MoreLess | |
Dimensions |
8 cm x 11 x 11 cm (3” x 4” x 4”) |
Weight |
7 lbs (3.1 kg) |
Housing Material |
PVC |
Scan Surface Dimensions |
25 cm x 8 cm |
Line Targets |
Material: Monofilament nylon |
Dimensions |
23.4 cm x 20.5 x 9.5 cm (9” x 8” x 4”) |
Weight |
7 lbs (3.1 kg) |
Housing Material |
PVC |
Scan Surface Dimensions |
(2) 17 x 8 cm; (2) 19 x 8 cm |
Line Targets |
Material: Monofilament nylon |
Dimensions |
28.5 cm x 12 x 10.6 cm |
Weight |
8 lbs (3.6 kg) |
Housing Material |
PVC |
Scan Surface Dimensions |
26.7 cm x 10 cm curved radius of 44.5 cm (17.5”) |
Line Targets |
Material: Monofilament nylon |
