Diagnostic QA SolutionsThe ATOM Phantom Family is uniquely designed for investigation of organ doses and whole body effective doses, as well as the verification of therapeutic radiation doses.
Proven Tissue Equivalent Technology
The ATOM Phantom Family represents a full line of anthropomorphic, cross-sectional dosimetry phantoms that leverage a wealth of tissue simulation experience and expertise that only Sun Nuclear can offer.
Dosimetry Investigation & Verification
Each phantom age accounts for key variations in tissue composition due to age or sex and accounts for variations in bone mineral density. This results in a more precise physical model with which to investigate the interaction of radiation with different tissues. It allows for more accurate dose calculations in different age groups.
Dosimeter Hole Configuration
All ATOM sections are drilled with a series of holes for dosimeter placement. Each hole is initially filled with a solid, tissue-equivalent plug.
ATOM phantoms offer three different hole configurations: organ dosimetry grid, a 3 x 3 cm grid, or a 1.5 x 1.5 cm grid.
CT and Cone Beam CT dosimetry can require organ dosimetry and whole-body dosimetry.
Optimize your Radiation Therapy Program with ATOM Phantoms
Enabling Safer Human Space Travel

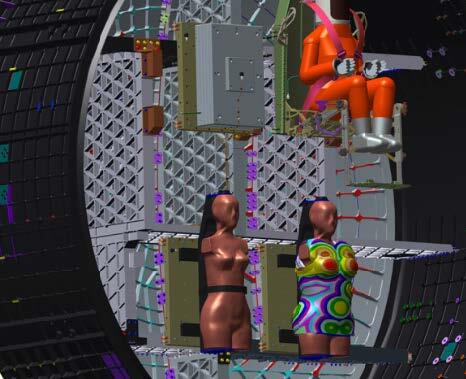

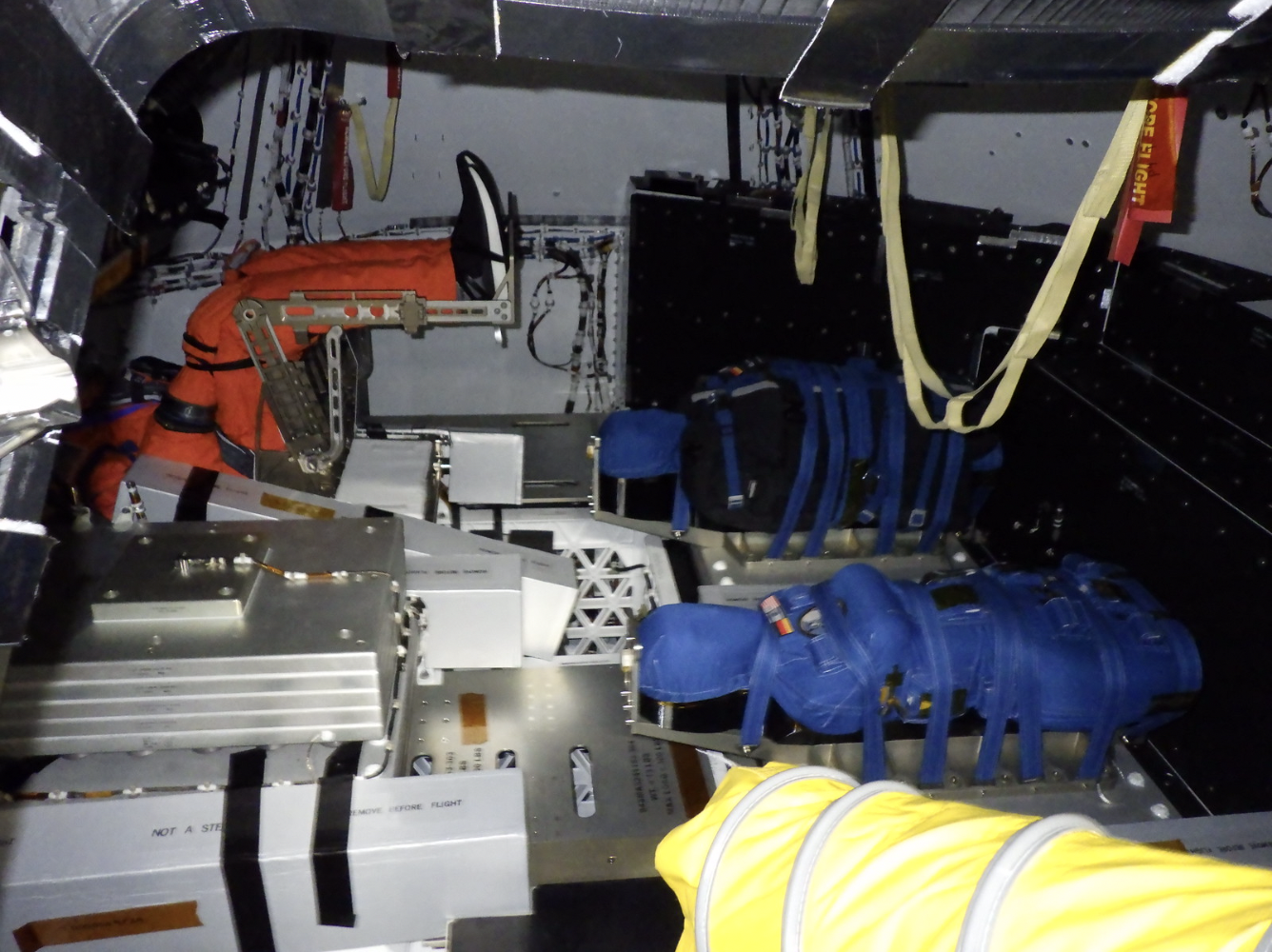

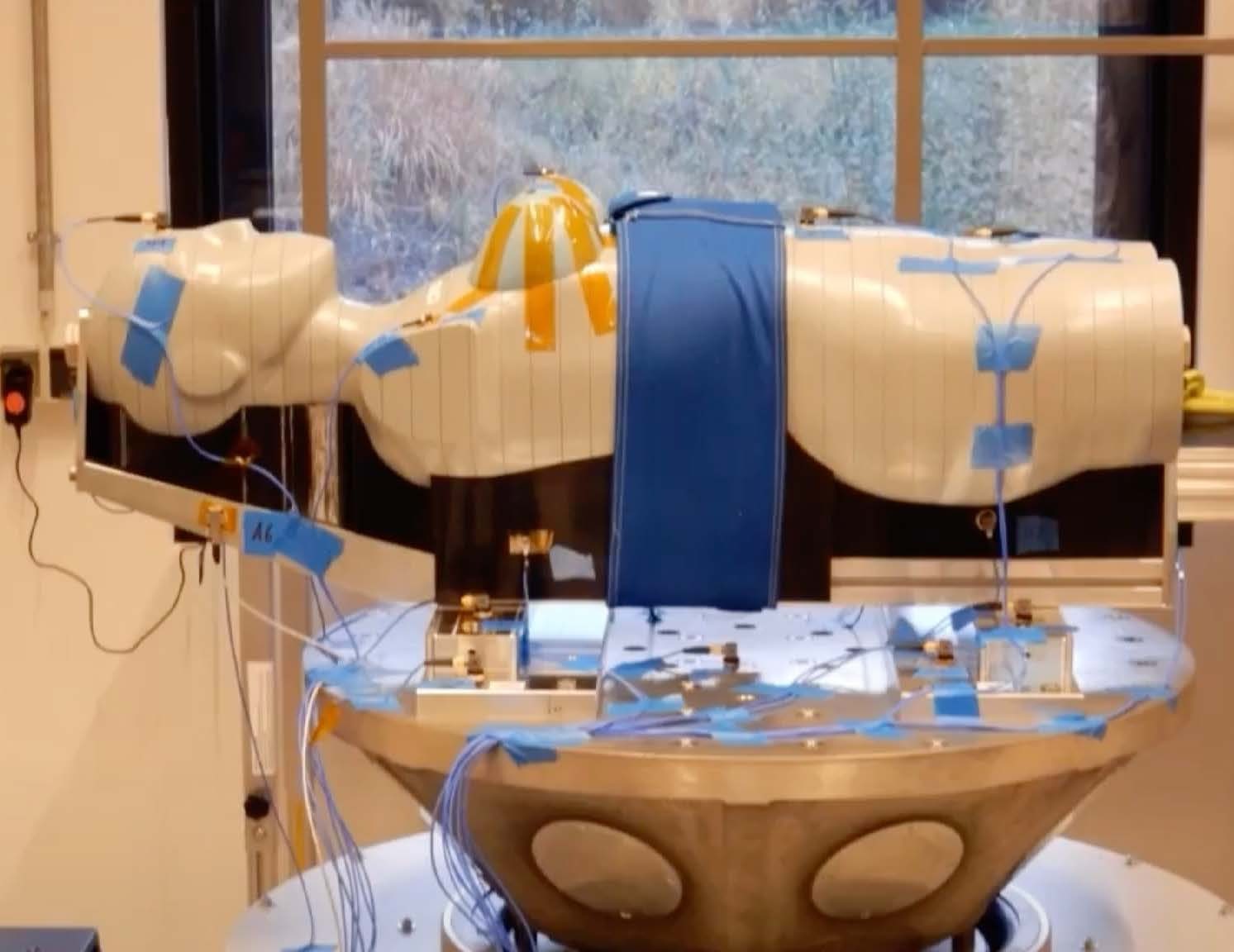

NASA's Artemis I mission to the Moon will feature two custom-designed female ATOM Phantoms. "Helga" and "Zohar" will fly as proxies for female astronauts to help determine risk to radiation-sensitive organs, and ensure more inclusive possibilities for the future of human space travel.
Images sources: The European Space Agency and DLR
Limb Attachment Kits
Limb set (one set includes both arms and legs) can be purchased and drilled with 5 mm or 14 mm holes in an organ configuration
Breast Attachments
Available in supine and standing orientations for male and female.
Thermoluminescence Dosimetry (TLD)
Sectioned and drilled ATOM phantoms readily accept TLDs using a 5 mm plug.
Metal Oxide Semiconductor Field Effect Transistor (MOSFET)
The plug is manufactured t o fit 5 mm diameter holes in an ATOM phantom.
OSL Dosimetry
OSL holder plugs are designed to fit standard OSL dosimeters and require 14 mm diameter hole configurations to accommodate the device.
Ion Chamber Dosimetry
ATOM phantoms can be custom-drilled to accommodate various ion chambers and diodes.
Resources
Specifications
Available Dosimetry Configurations |
B, C, D & G |
Height |
173 cm |
Weight |
73 kg |
Thorax Dimensions |
23 cm x 32 |
Bone Physical Density, CC |
1.60 |
Bone Electron Density, 1/CC |
5.030 - 1023 |
| MoreLess | |
Available Dosimetry Configurations |
B, C, D & G |
Height |
160 cm |
Weight |
55 kg |
Thorax Dimensions |
20 x 32 cm |
Bone Physical Density, CC |
1.60 |
Bone Electron Density, 1/CC |
5.030 - 1023 |
| MoreLess | |
Available Dosimetry Configurations |
B & D |
Height |
51 cm |
Weight |
3.5 kg |
Thorax Dimensions |
9 x 10.5 cm |
Bone Physical Density, CC |
1.41 |
Bone Electron Density, 1/CC |
4.498 - 1023 |
| MoreLess | |
Available Dosimetry Configurations |
B, C, D & G |
Height |
75 cm |
Weight |
10 |
Thorax Dimensions |
12 x 14 cm |
Bone Physical Density, CC |
1.45 |
Bone Electron Density, 1/CC |
4.606 - 1023 |
| MoreLess | |
Available Dosimetry Configurations |
B, C, D & G |
Height |
110 cm |
Weight |
19 kg |
Thorax Dimensions |
14 x 17 cm |
Bone Physical Density, CC |
1.52 |
Bone Electron Density, 1/CC |
4.801 - 1023 |
| MoreLess | |
