Diagnostic QA SolutionsThe Tissue Equivalent Ultrasound Prostate Training Phantom and the Prostate Training Phantom are realistic and durable tools for both diagnostic and interventional procedures.
Tissue Equivalent Ultrasound Prostate Training Phantom
- Includes rectal wall, seminal vesicles, perineal membrane and urethra
- Train for ultrasound-guided cryosurgery, seed implantation and needle biopsy with one phantom
- Compatible with various probes and surgical tools
- Structures visible under CT, MRI, ultrasound and elastography
- Gel designed to minimize needle tracking
Prostate Training Phantom
- Includes bladder rectal wall, perineal membrane and urethra plus digitally modeled prostate gland and seminal vesicles
- Phantom available with and without lesions
- Train for ultrasound-guided seed implantation, cryosurgery and needle biopsy in one phantom

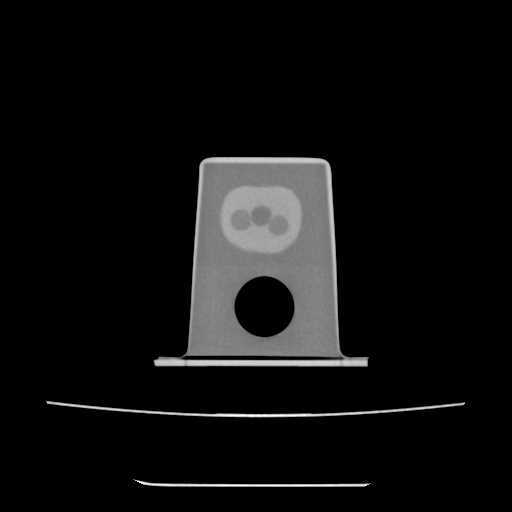

CT Image- Tissue Equivalent Ultrasound Prostate Phantom

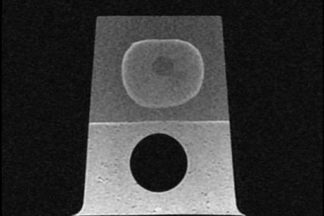

MRI Image- Tissue Equivalent Ultrasound Prostate Phantom

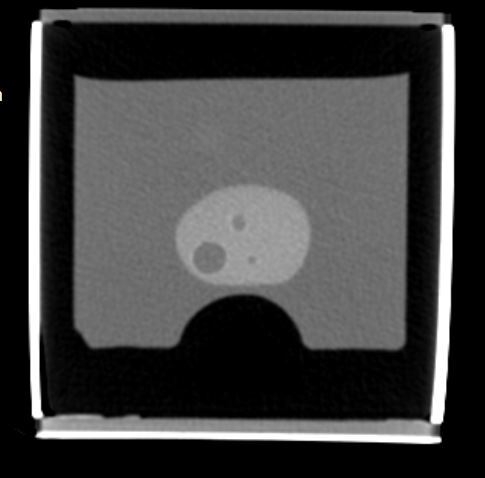

CT Image- Prostate Training Phantom

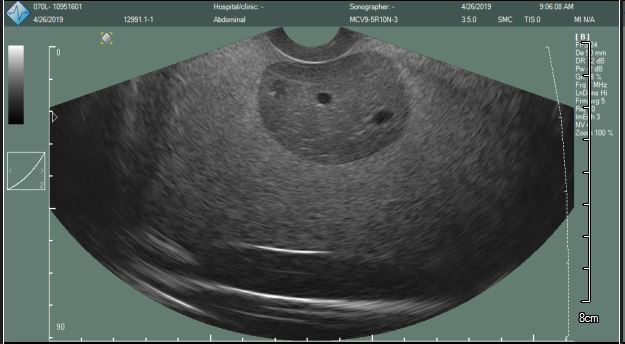

Ultrasound Image- Prostate Training Phantom
Revolutionize ultrasound training with our advanced prostate phantoms
Specifications
Container |
Dimensions: 11.5 x 7 x 9.5 cm Weight: 2 lbs Front probe opening: 3.2 cm Ø Rear probe opening: 2.6 cm Ø |
Background Gel |
Ultrasound appearance: anechoic CT appearance: dark MRI appearance: dark (T1 weighted) Elastography: soft |
Urethra |
Dimensions: 7 mm Ø Ultrasound appearance: anechoic CT appearance: dark, similar to prostate MRI appearance: dark than prostate (T1 weighted) Elastography: stiffer than prostate |
Prostate |
Dimensions: 5 cm x 4.5 cm x 4 cm Ultrasound appearance: average echo- genicity CT appearance: dark, slight contrast with background MRI appearance: bright (T1 weighted) Elastography: soft, slight contrast with background Volume: 53 cc |
Seminal Vesicles |
Dimensions: 7 mm Ø x 10 cm long Imaging appearance is similar to prostate |
Perineal Membrane |
3 mm thick Z-skin™ elastomer |
Lesions (053L and 053L-EF) |
Qty: 3 Dimensions: Approximately 10 mm Ø Ultrasound appearance: hypoechoic CT appearance: bright MRI appearance: dark (T1 weighted) Elastography: stiff |
Rectal Wall |
Dimensions: 6 cm x 11 cm x 0.5 cm Imaging appearance is similar to urethra |
| MoreLess | |
Container |
Dimensions: 12.7 x 12.7 x 12.7 cm Weight: 2 lbs |
Perineal Membrane |
Material: Z-Skin |
Background Gel |
Standard Ultrasound background 0dB with respect to liver reference |
Urethra |
Dimensions: 0.7 cm Ø |
Seminal Vesicles |
Dimensions: 7 mm Ø x 10 cm long Material: Zerdine, hypoechoic with respect to background |
Prostate |
Hypoechoic with respect to background 45 cc Digitally Modeled with seminal vesicles and bladder. Embedded lesions |
Rectal Wall |
Material: Z-Skin |
